Automatic PCB board distributor EXE-880F-Hangzhou Yixie Intelligent Equipment Co., Ltd.

Product details page Product characteristics Quality assurance and after-sales service

Customer site

Hangzhou Yixie Intelligent Equipment Co., Ltd

Milling cutter splitter customer site

Function introduction

Double Y axis working platform

Double Y axis worktable structure, the left and right worktables are driven by servo motor and screw guide rail, processing speed block, high production efficiency, strong stability, greatly improve the processing capacity.
Software operating interface

Windows operating interface friendly Chinese and English switching, Graphical window operation interface, editing program is simple, can quickly complete the multi - point program.
Safety grating facility

Safety raster facilities are installed in PCB taking and placing area of double Y-axis workbench to avoid manual misoperation and meet public safety requirements.
Automatic cutting of milling cutter

The software sets the function of milling cutter segmentation, the milling cutter after using a section of automatic cutting compensation, prolong the service life of the milling cutter, reduce the cost.
Upper suction structure

The upper suction structure (optional) adopts electrostatic brush to seal the cutting point, independent suction for single cutting point, greatly improving the suction effect.
Milling cutter fracture detection system

Milling cutter detection system adopts photoelectric inductor to monitor milling cutter status in real time and effectively prevent the phenomenon of continued operation after the cutter is broken.

Configuration introduction

Japan NSK spindle

Japan NSK spindle, high cutting precision, quality and efficiency double guarantee

Gantry horizontal module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity.

Marble platform

The main structure adopts marble platform, motion module, section cutting, high stability.

Ion gun

PCB board cutting generates a lot of static electricity, dust will be adsorbed on the PCB board surface, ion wind blowing into the PCB board surface to eliminate static electricity, ion balance degree up to ±5V.

Electronic control layout

Reasonable wiring of electric control line, easy and convenient maintenance.

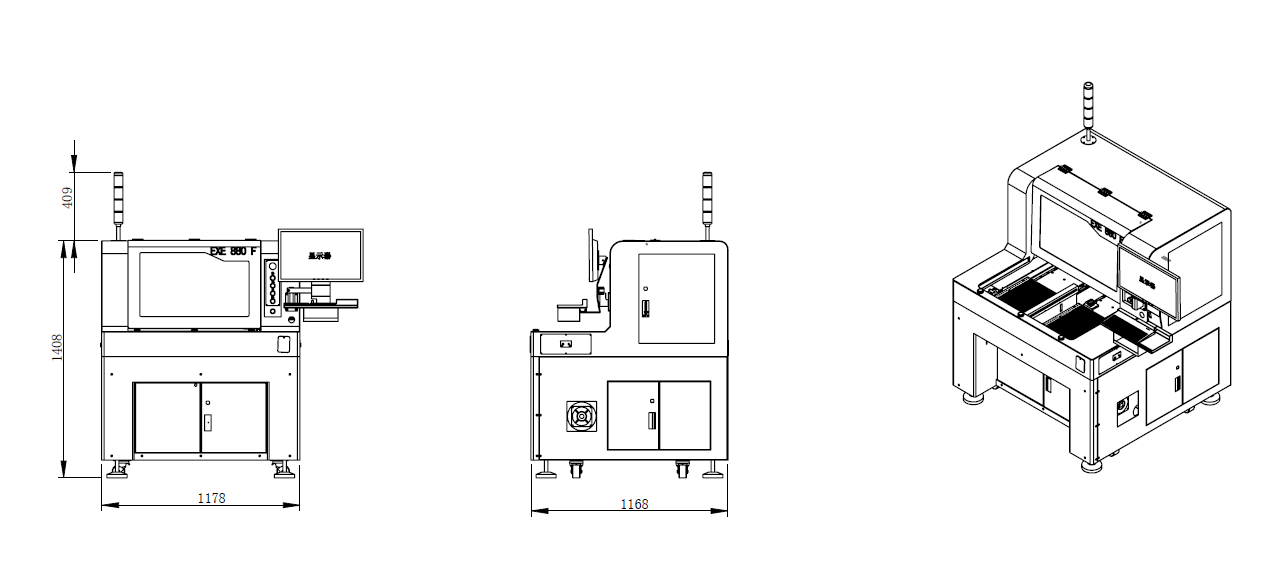

80F Automatic PCB stripper EXE-880F

1, automatic PCB board parting machine using high-speed NSK spindle cutting board, greatly reduce cutting stress, high precision, small inertia, fast response.
2. Grating safety facilities are installed in PCB taking and placing area of double Y-axis workbench to avoid manual misoperation and meet public safety requirements.
3, Windows operation interface is friendly to switch between Chinese and English, graphical window operation interface, simple editing program, can quickly complete the multi-point program.
4. Multi-layer management rights for software users to prevent misoperation and other behaviors.
5. The vacuum under the automatic PCB splitter adopts the sealed design, and the suction inlet adopts the 45 degree Angle to reduce the vortex generated by the dust inside.
6. The upper vacuum structure (optional) adopts electrostatic brush to seal the cutting point, independent vacuuming for single cutting point, greatly improving the vacuuming effect.
7, the milling cutter detection system uses photoelectric inductor, real-time monitoring of milling cutter state, effectively prevent the phenomenon of continued operation after breaking the cutter.
8, software set milling cutter segmentation function, automatic cutting compensation, prolong the service life of the milling cutter, reduce the cost.

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.

- The after-sales service personnel are all senior professional and technical personnel of the company, who have passed the formal training of the company and only work independently after passing the examination. After receiving the notice of equipment failure, if the equipment cannot work normally, the after-sales department will give a reply within half an hour outside the Yangtze River Delta, and dispatch personnel to the scene within 2 hours to solve the problem; The Yangtze River Delta within half an hour to reply, and then according to the specific situation within 24 hours to send after-sales personnel to the scene to solve the problem. (In case of abnormal production after startup, the after-sales staff shall communicate with the customer and arrive at the scene within the time required by the customer).

- The company's after-sales staff is on standby 24 hours a day, regardless of Saturday, Sunday and holidays.

- After the equipment arrives at your company, our company will arrange engineering and technical personnel to install and debug the equipment.

- Our company can arrange after-sales technicians to stay in the customer's company for three days, responsible for training and technical guidance (can be extended according to the customer's appropriate requirements) until the acceptance.

- Our after-sales technical staff is responsible for comprehensive training, and your operation and technical staff provide wholehearted service to the installation and operation of our company's equipment without reservation.

- If the customer company has the requirement, our company can help the customer company to carry out the test of the operation of the board machine for its technical personnel.
