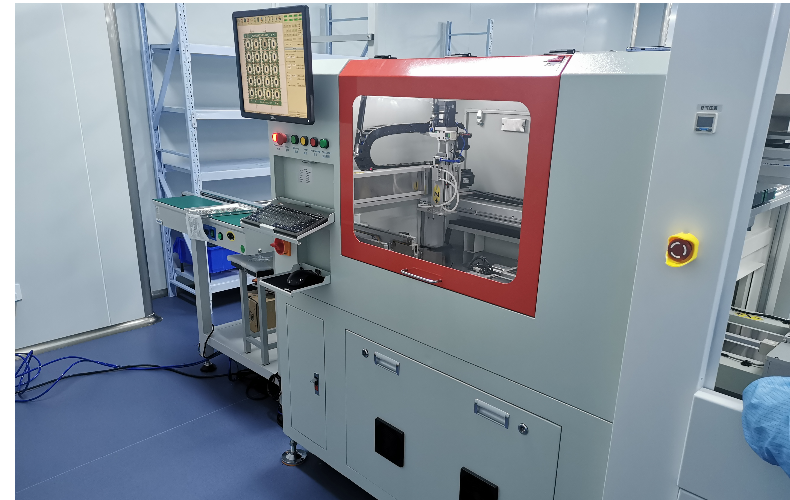

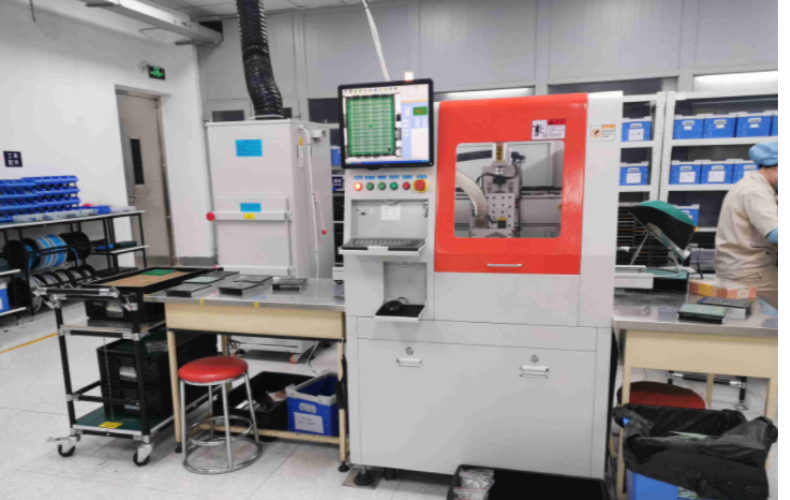

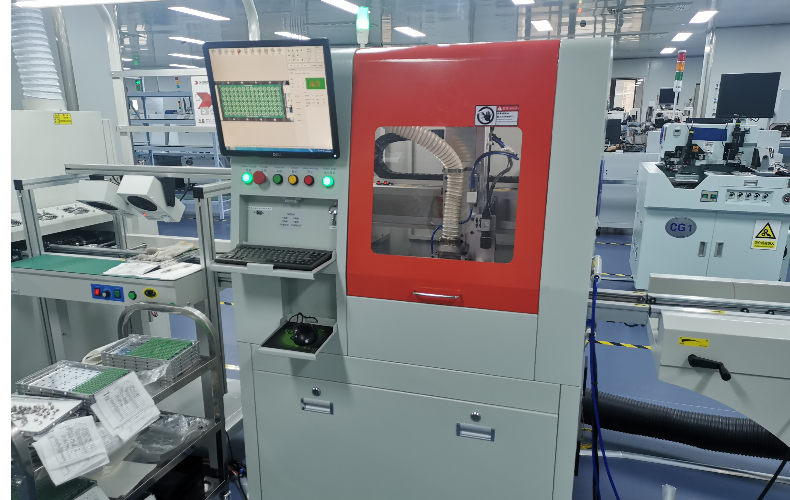

Online sawtooth splitter for customers onsite

Applicable product

The rear component blocks the V slot
Multi-plate V slot products
Headlight foot pit lamp products
Medical products, rear component shielding V slot
The back of the V slot is covered with threading needles
There are capacitive resistors around V slot of the power supply product

Configuration introduction

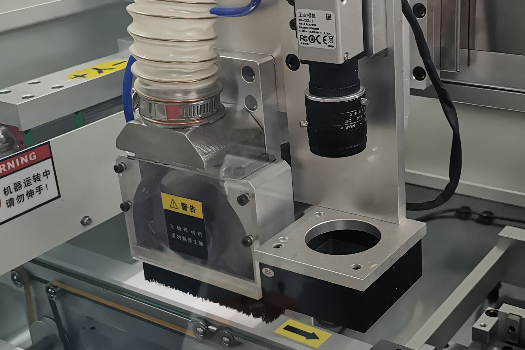

High power high speed spindle

Using high power and high speed spindle, cutting stability, smooth incision, can achieve 90 degrees rotary cutting

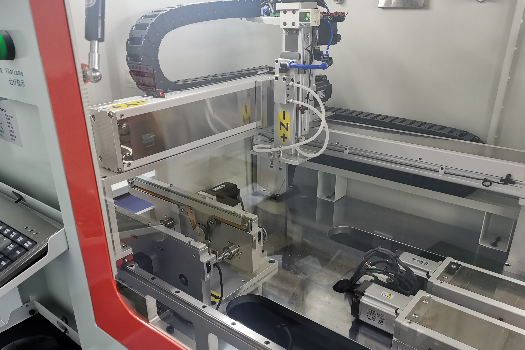

Automatic feeding shaft

Track plate, automatically grab the product to the cutting platform, the whole process of automatic production, no personnel operation

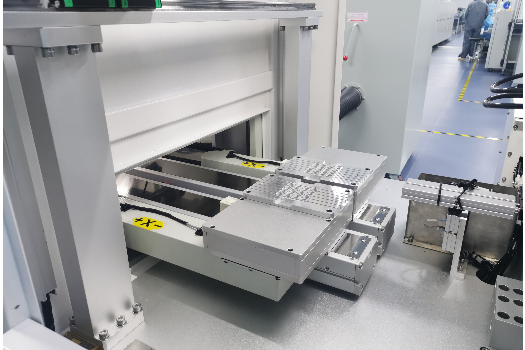

Double platform protruding structure

Seamless docking of the next station process, such as online plate machine, manipulator, size detection machine, automatic burning and other processes

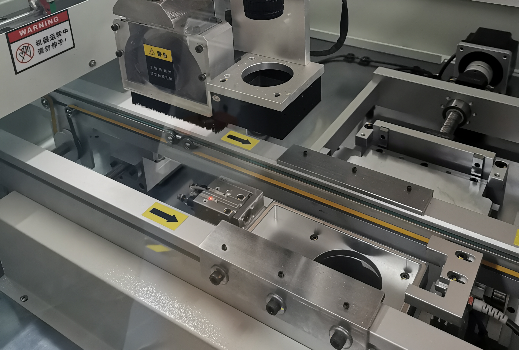

Automatic rail splint

Online track splint function, automatic induction plate tooling is in place, automatic clamping plate tooling, cutting more stable

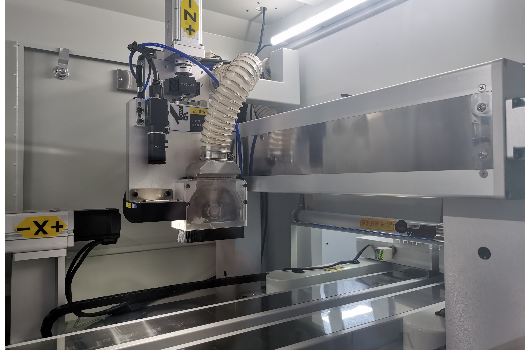

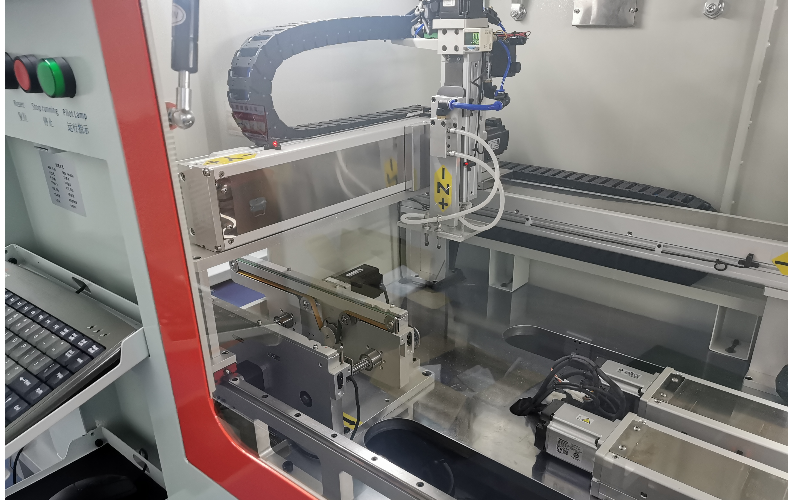

Gantry horizontal module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity

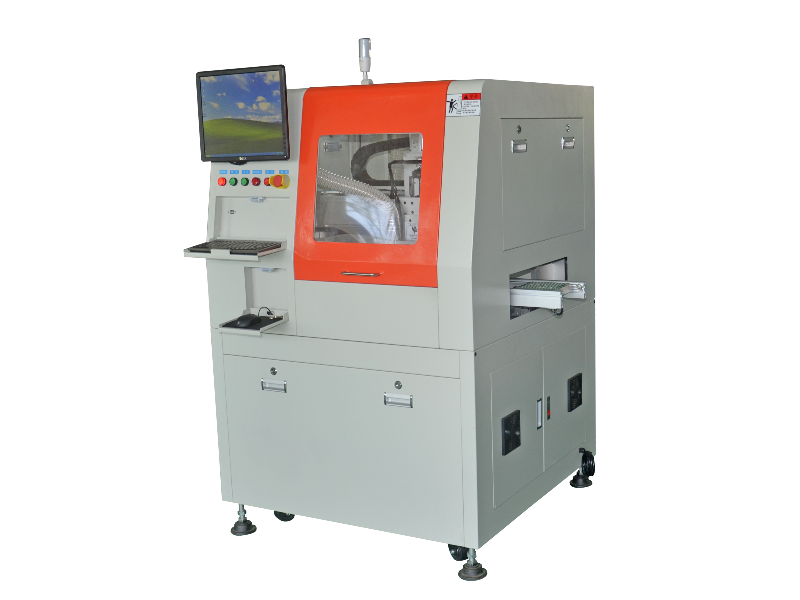

Online sawtooth splitter EXE-350AT

1. Action process: feeding - entering the cutting area - blade loss detection (software can set the detection of how many pieces to cut) - visual phase taking (Mark point recognition and compensation) - X direction sub-board - Angle rotation of cutting blade group - Y direction sub-board - cutting
2. The cutting section of the product is smooth and smooth, without edge breakage burr. High precision and consistent cutting size.
3. Blade linear speed of 3200M/Min. The stress of the sub-plate is small, the actual test stress of the sub-plate is less than half of the stress of the milling cutter type sub-plate.
4. Fast dividing efficiency, the actual dividing speed is more than 100mm per second.
5 equipment accuracy: ±0.01mm. Precision: ±0.05mm
6. Adopt high quality, high temperature resistant wafer cutting blades. Our company adopts the blade with the maximum diameter of 79mm to save the blade to the greatest extent. Meanwhile, it can also cut the PCBA with high components, and the height limit is within 10mm.
7. Power supply for the machine: two-phase: AC220V 60HZ
8. Anti-stay function:
A.cba not put well or different models, Mark point identification alarm.
B.cba not fixed adsorption, adsorption negative pressure meter alarm.
c. Blade wear Z-axis automatic compensation, reach the limit equipment alarm.

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.

- The after-sales service personnel are all senior professional and technical personnel of the company, who have passed the formal training of the company and only work independently after passing the examination. After receiving the notice of equipment failure, if the equipment cannot work normally, the after-sales department will give a reply within half an hour outside the Yangtze River Delta, and dispatch personnel to the scene within 2 hours to solve the problem; The Yangtze River Delta within half an hour to reply, and then according to the specific situation within 24 hours to send after-sales personnel to the scene to solve the problem. (In case of abnormal production after startup, the after-sales staff shall communicate with the customer and arrive at the scene within the time required by the customer).

- The company's after-sales staff is on standby 24 hours a day, regardless of Saturday, Sunday and holidays.

- After the equipment arrives at your company, our company will arrange engineering and technical personnel to install and debug the equipment.

- Our company can arrange after-sales technicians to stay in the customer's company for three days, responsible for training and technical guidance (can be extended according to the customer's appropriate requirements) until the acceptance.

- Our after-sales technical staff is responsible for comprehensive training, and your operation and technical staff provide wholehearted service to the installation and operation of our company's equipment without reservation.

- If the customer company has the requirement, our company can help the customer company to carry out the test of the operation of the board machine for its technical personnel.
