Sawing and milling integrated board splitting machine EXE-380-Hangzhou Yixie Intelligent Equipment Co., Ltd.

Product details page Product characteristics Quality assurance and after-sales service

Customer site

Hangzhou Yixie Intelligent Equipment Co., Ltd

Serrated blade splitter for customers onsite

Applicable product

Medical products stamp hole and V slot process
Headlight foot pit lamp products
Multi - plate V slot, stamp hole products
4 Plate V slot, stamp hole products
The back of the V slot is covered with threading needles
Multi-panel electric meter products

Configuration introduction

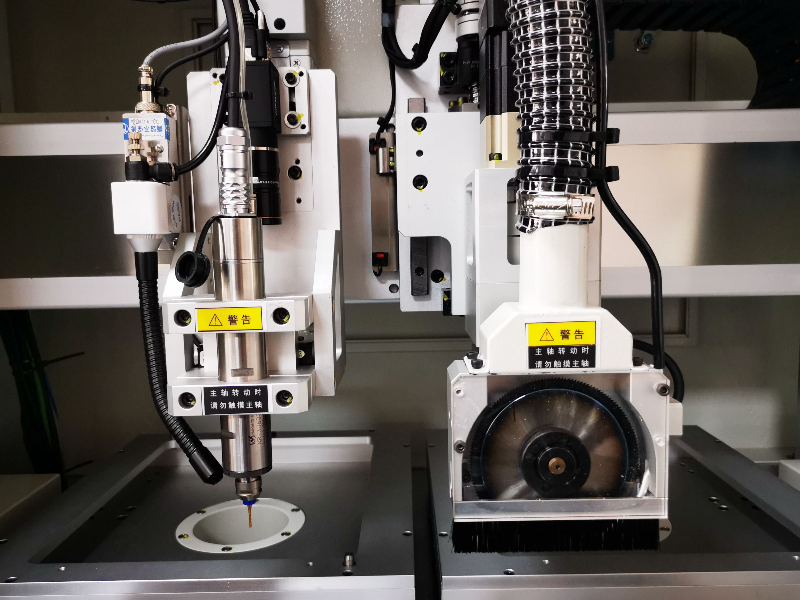

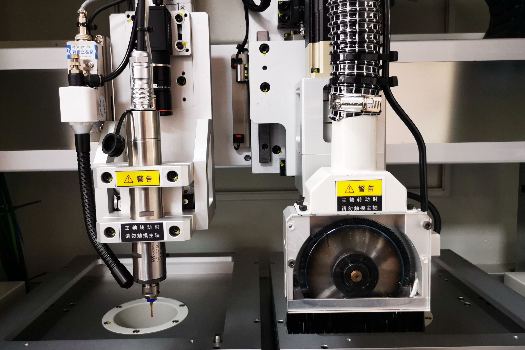

Sawing and milling in one double spindle

With milling cutter and high-speed cutting in one, a machine is quite two equipment, suitable for the same product with bridge, stamp hole, V-CUT and other PCBA splicing process, realize the whole automatic spindle switching, greatly improve the efficiency of the board

Dust-free module

The sealed dust-free module is adopted to prevent dust from attaching to the screw effectively, and the maintenance is more convenient

Double countertop

Double station double suction port, effective adsorption products to prevent shaking, dust treatment effect is excellent

Gantry horizontal module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity

Sawing and milling integrated board splitting Machine EXE-380 Product Features:

1. The cutting section of the product is smooth and smooth, without edge breakage burr. High precision of the board.
2. Computer intelligent control. The stress of the splitter is small, and the actual test stress of the splitter is less than half of the stress of the milling cutter splitter.
3. Fast dividing efficiency, the actual dividing speed is more than 100mm per second.
4. Equipment accuracy: ±0.02mm. Precision: ±0.05mm

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.

- The after-sales service personnel are all senior professional and technical personnel of the company, who have passed the formal training of the company and only work independently after passing the examination. After receiving the notice of equipment failure, if the equipment cannot work normally, the after-sales department will give a reply within half an hour outside the Yangtze River Delta, and dispatch personnel to the scene within 2 hours to solve the problem; The Yangtze River Delta within half an hour to reply, and then according to the specific situation within 24 hours to send after-sales personnel to the scene to solve the problem. (In case of abnormal production after startup, the after-sales staff shall communicate with the customer and arrive at the scene within the time required by the customer).

- The company's after-sales staff is on standby 24 hours a day, regardless of Saturday, Sunday and holidays.

- After the equipment arrives at your company, our company will arrange engineering and technical personnel to install and debug the equipment.

- Our company can arrange after-sales technicians to stay in the customer's company for three days, responsible for training and technical guidance (can be extended according to the customer's appropriate requirements) until the acceptance.

- Our after-sales technical staff is responsible for comprehensive training, and your operation and technical staff provide wholehearted service to the installation and operation of our company's equipment without reservation.

- If the customer company has the requirement, our company can help the customer company to carry out the test of the operation of the board machine for its technical personnel.
