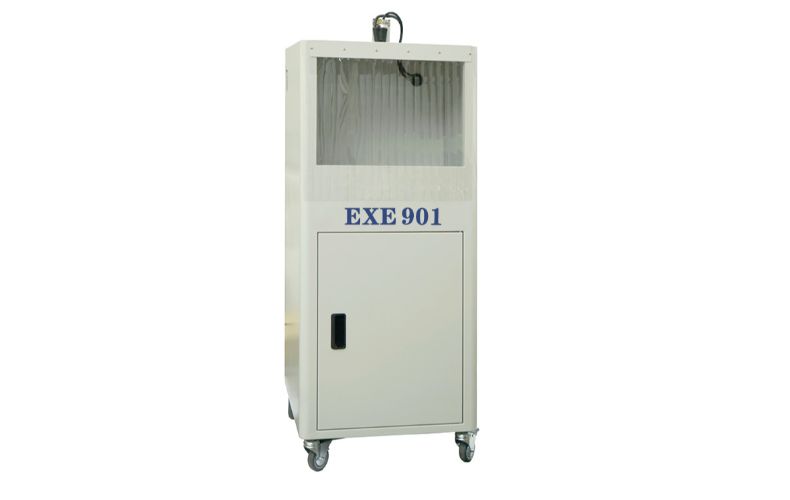

Secondary dust collector EXE901
Specification parameters
Basic specifications
1. Voltage: 220V ² 60 (50) Hz 2.3A (1.3) A
2. Dust collection motor power: 0.2KW
3. Ion generator: Input: 220V/120mA Output: 4.6KV/4.5mA
4. Entrance diameter: 58mm
5. Noise: 40dB
6. Weight: 30 Kg
7. Dimensions: (LxWxH) 700x400x1150mm
Product Details Page Product Features Quality assurance and after-sales service

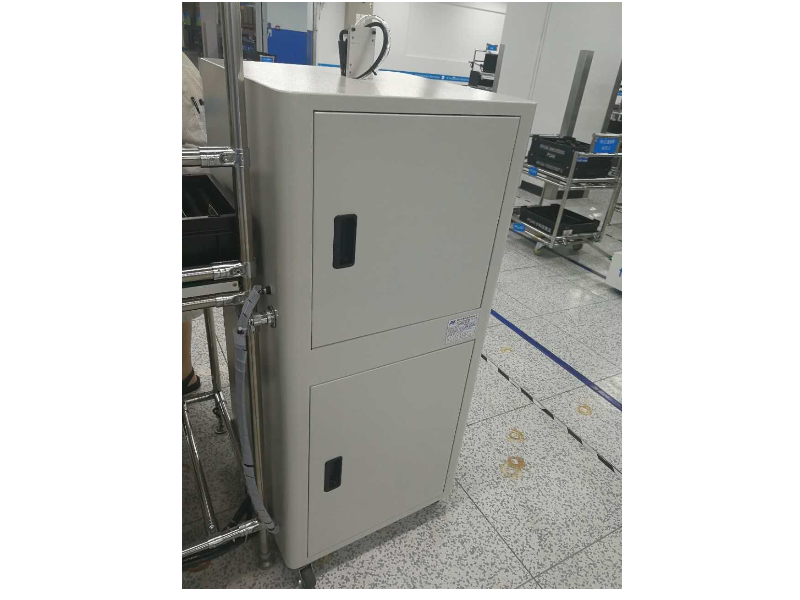

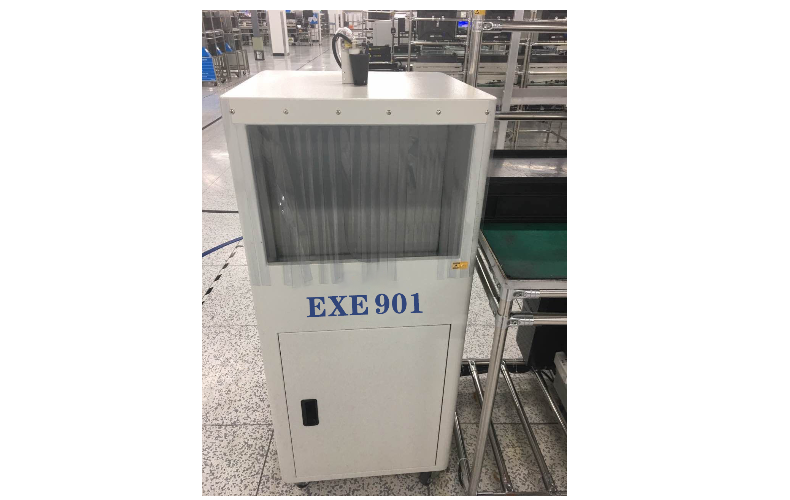

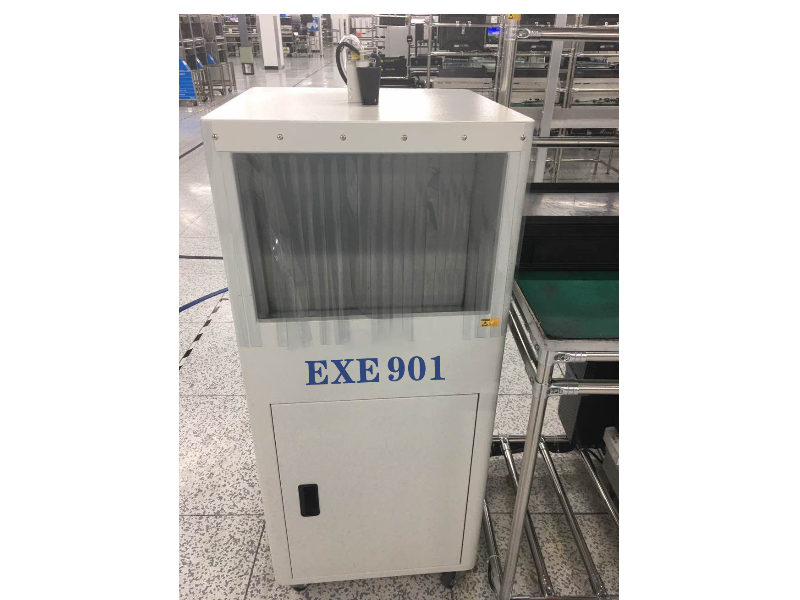

Customer site
Hangzhou Yixie Intelligent Equipment Co., Ltd
Secondary dust collector EXE901
Hangzhou Yixie Intelligent Equipment Co., Ltd
Secondary dust collector EXE901
Product Features:
Functional characteristics
Small size, no space occupation, easy to move.
The upper and lower parts adopt a separated structure, and the dust cover can be replaced according to the size of the board.
Using disposable dust collection paper bags, quick and convenient replacement, environmentally friendly and eliminates secondary pollution.
Equipped with an electrostatic air gun to generate ion air and thoroughly clean residual dust on the PCB.
Static air gun blowing and dust collection motor suction and extraction are carried out simultaneously to prevent further pollution of the surrounding environment.
The advanced industrial blower can operate 24 hours without stopping.
The equipment has good grounding protection and overload power-off protection.
Using an adapter to switch the suction port and quickly convert it into a vacuum cleaner can maintain the cutting machine.
Quality assurance after sale without worry
  • 24 hours on call
    There are Saturdays and Sundays and holidays
  • Pearl River Delta, Yangtze River Delta
    Half an hour to respond, two hours to the scene
Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.

- The after-sales service personnel are all senior professional and technical personnel of the company, who have passed the formal training of the company and only work independently after passing the examination. After receiving the notice of equipment failure, if the equipment cannot work normally, the after-sales department will give a reply within half an hour outside the Yangtze River Delta, and dispatch personnel to the scene within 2 hours to solve the problem; The Yangtze River Delta within half an hour to reply, and then according to the specific situation within 24 hours to send after-sales personnel to the scene to solve the problem. (In case of abnormal production after startup, the after-sales staff shall communicate with the customer and arrive at the scene within the time required by the customer).


- The company's after-sales staff is on standby 24 hours a day, regardless of Saturday, Sunday and holidays.

- After the equipment arrives at your company, our company will arrange engineering and technical personnel to install and debug the equipment.

- Our company can arrange after-sales technicians to stay in the customer's company for three days, responsible for training and technical guidance (can be extended according to the customer's appropriate requirements) until the acceptance.

- Our after-sales technical staff is responsible for comprehensive training, and your operation and technical staff provide wholehearted service to the installation and operation of our company's equipment without reservation.

- If the customer company has the requirement, our company can help the customer company to carry out the test of the operation of the board machine for its technical personnel.
